#K247JPV8 – TBI KIT: 1972-93 304, 360, 401 V-8 Jeep/AMC – Emissions Legal

$1,500.00

Clear
SKU: K247JPV8 CARB Legal Category:

Description

Part # K247JPV8 Emission Legal Version CARB EO #D452-1

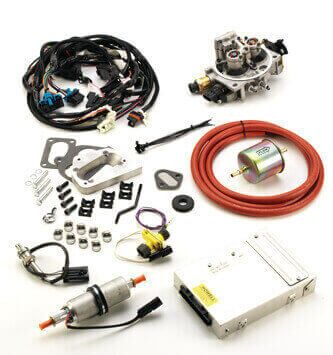

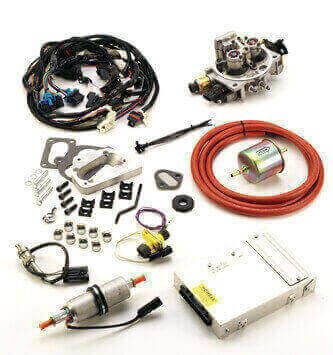

Converts Jeep or other AMC V8 to ECM controlled TBI fuel injecion. Remanufactured GM throttle body adapts directly to 2 or 4 barrel AMC intake manifold, replacing carb. Contains all necessary sensors, wiring harness, ECM and electric fuel pump (no fuel lines). Runs with stock AMC distributor. Emission Legal in 50 states per CARB E.O. #D452-1 JP V8. ECM mounts under dash. High pressure fuel pump must be installed in main fuel line from tank and bypass fuel returned to the tank. Harness includes diagnostic connector, and diagnostic is similar to 1986-92 GM pickup truck.

Manuals

More installation manuals can be found at this link.

Additional information

Weight 18 lbs
