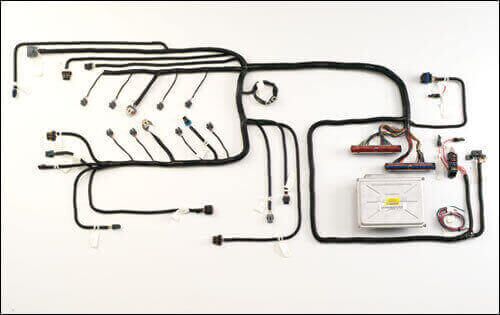

#HVL48TD – GEN III VORTEC HARNESS: 2002-07 4.8L w/ 4L60E Transmission Drive By Wire

Price range: $700.00 through $800.00

SKU: HVL48TD Category: Wiring Harnesses

Part # HVL48TD

2002-2007 GEN III 4.8L engine wiring harness with 4L60E Transmission. Drive by Wire throttle control. Covered with high temperature split loom covering.

More installation manuals can be found at this link.

Weight	11 lbs
Dimensions	12 × 12 × 12 in

(810) 765-5100
